Detail :: Data Jembatan

Jembatan Wanzhou Fuma

Panjang1.050,00 m
Bentang Terpanjang1.050,00 m
Kondisi UmumProgress
Jenis JembatanGantung
Tanggal Selesai2016
Tanggal Peresmian2016
Latitude (GPS)30.8298200000000000
Longitude (GPS)108.4746169999999700

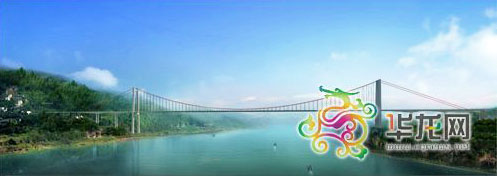

The longest span bridge ever built in Chongqing Province, the Wanzhou Fuma Yangtze River Bridge is the 3rd major road bridge across the Yangtze River at Wanzhou city and the second major suspension bridge. The main span of 1,050 meters is almost double the length of the nearby 2nd Wanzhou Bridge crossing and the first span upstream of the 3 Gorges Dam to have a length of over 1 kilometer.

The most unique design element of the bridge is the north side cantilevered beam approach bridge of 77.5+145+77.5 meters. The use of a large prestressed beam bridge right up to the tower and the main suspended span has only been done once before on the Fuling Qingcaobei Yangtze River Bridge located 200 kilometers upstream of Wanzhou. The southeast approach will have more conventional spans of 6x30 meters.

The bridge height is an estimate to the original Yangtze River level. The height to the full 3 Gorges reservoir surface will probably be approximately 115 meters.
