Jembatan Wuchahe

Panjang372,00 m
Bentang Terpanjang180,00 m
Kondisi UmumProgress
Jenis JembatanConcrete Box Girder
Tanggal Selesai2013
Tanggal Peresmian2013
Latitude (GPS)28.0541740000000000
Longitude (GPS)106.4211490000000100

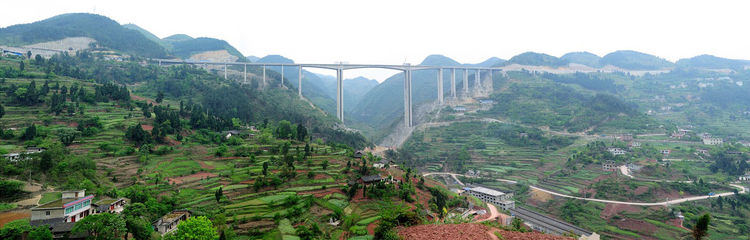

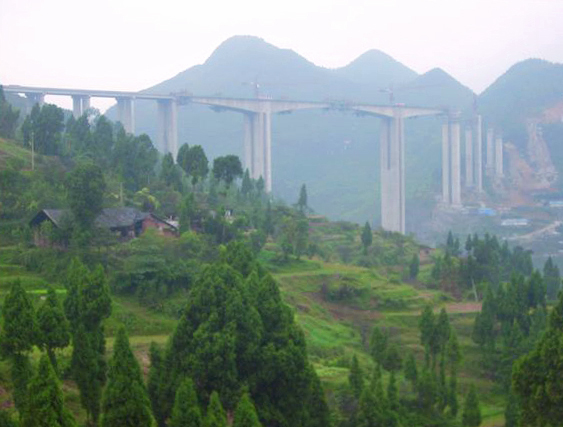

Another high Chinese crossing on the Renchi expressway, the Wuchahe Bridge looks precarious above a steep, V-shaped gorge 30 kilometers north of Renhuai City. The 135 and 145 meter piers are unusual for having no cross connections between the inside of the pier slabs. Nearby Erlanghe has similar sized piers but there are 3 connections within the pier shafts. Computer modeling along with soil and rock surveys must have shown the entire structure to be on solid ground to allow the piers to be more open. The main span configuration is 96+180+96 meters with 40 meter approach spans for a total length of 939.4 and 811.2 meters long.
