Jembatan Russky

Panjang3.100,00 m
Lebar21,00 m
Jumlah Bentang1
Bentang Terpanjang1.104,00 m
Kondisi UmumAktif
Jenis JembatanCable Stayed
Tanggal Mulai2009
Tanggal Selesai2012
Tanggal Peresmian03 September 2012
Latitude (GPS)43.0632220000000000
Longitude (GPS)131.9074439999999400

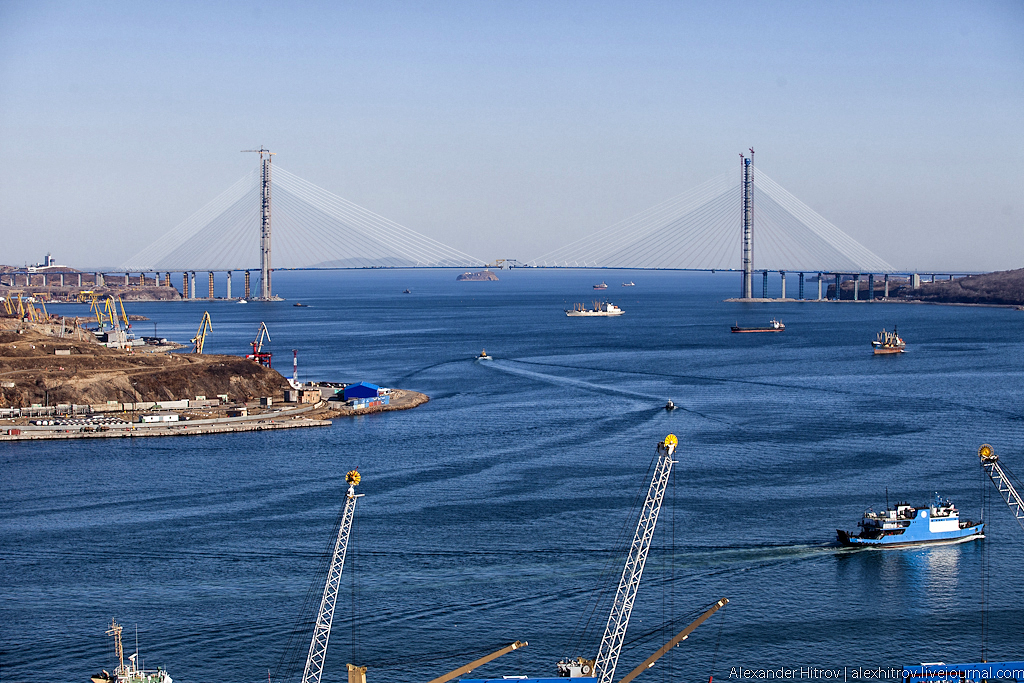

The Russky Bridge (Russian: Русский мост - Russian Bridge) is a bridge built across the Eastern Bosphorus strait, to serve the Asia-Pacific Economic Cooperation that took place in Vladivostok in 2012. The bridge connects the mainland part of the city (Nazimov peninsula) with Russky Island, where the main activities of the summit took place. The bridge was completed in July 2012 and opened by Russian Prime Minister Dmitry Medvedev.[1] On September 3, 2012, the bridge was officially given its name.[2]


The bridge to Russky island is the world's longest cable-stayed bridge, with a 1104 m long central span.

The bridge also has the second highest pylons after the Millau Viaduct and the longest cable stays.

The design of the bridge crossing has been determined on the basis of two primary factors:

  • Shortest coast-to-coast distance in the bridge crossing location 1460 m. Navigable channel depth is up to 50 m.
  • The locality of the bridge crossing construction site is characterized by severe climate conditions: temperatures vary from -31°C to 37°C, storm wind velocity of up to 36 m/s, storm wave height of up to 6 m, ice formation in winter of up to 70 cm thick.

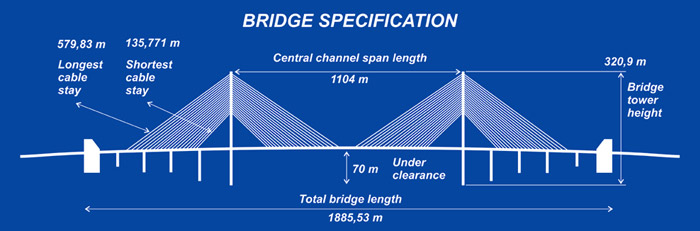

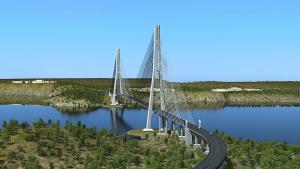

Bridge specification

Completed bridge at night, 2013
  • Bridge footprint: 60+72+3x84+1104+3x84+72+60 m
  • Total bridge length: 1885.53 m
  • Total length incl. trestles: 3100 m
  • Central channel span length: 1104 m
  • Bridge width: 29.5 m
  • Bridge roadway breadth: 23.8 m
  • Number of driving lanes: 4 (two in each direction)
  • Under clearance: 70 m
  • Number of bridge towers: 2
  • Pylons’ height: 320.9 m
  • Number of cable stays: 168
  • Longest / shortest cable stay: 579.83/135.771 m

Pylons construction

The piles were driven as deep as 77 m below ground and on the island side 120 auger piles were piled under each of the two 320 m high bridge towers.

The pylons were concreted using custom self-climbing forms in pours of 4.5 m. A crane was used on the first three pours, afterwards the formwork was completed unaided moving through the hydraulic motion of modular elements.

The pylons are A-shaped, therefore, the use of standard forms was not feasible. An individual set of forms was arranged for each bridge tower.

Transition between section types was carried out at summer levels at the elevations of 66.26 m and 191.48 m.

The use of self-climbing forms made it possible to achieve better quality and decrease the time of construction of cast-in-situ reinforced concrete structures by half as much again.

The cable stays anchorage zone starts at 197.5 m. The installation of cable stay pairs and casting of bridge tower bodies was be carried out simultaneously, dramatically reducing the construction period.

Central Span Structure

The span structure has an aerodynamic cross-section to assume squally wind loads. The shape of the span cross-section has been determined based on aerodynamic design and optimized according to the results of experimental processing of the scale model in the detailed design phase.

Welded field connections are used for longitudinal and transversal joints of the cap sheet of the Orthotropic deck and lower ribbed plate. For joints of vertical walls of the blocks, longitudinal ribs, transversal beams and diaphragms, field connections are used provided by means of high-strength bolts.

Large-sized prefabricated sections for the installation of the central span were delivered by barges to the erection site and hoisted by a crane to a 76 m height. Here, the elements were abutted and cable stays attached to them.

Cable-Stayed System

A cable-stayed system assumes all static and dynamic loads on which the very existence of the bridge depends. Cable stays are not designed to endure the entire lifetime of the bridge, but they are repairable and have the best possible protection from natural disasters and other adverse impacts. PSS cable stays consist of parallel strands of 15.7 mm diameter; every strand consists of 7 galvanized wires. Cable stays incorporate from 13 to 79 strands. The length of the shortest cable stay will be 135.771 m, the longest – 579.83 m. The protective housings of the cable stays will be made from HDPE and will have the following features: UV resistance; resistance to local climate conditions of Vladivostok (temperature range from minus 40°C to plus 40°C) and environmental aggressiveness.

The bridge was opened by Medvedev in July 2012. Though being unique in its main parameters, the bridge was constructed in a record-breaking time of 43 months.


The costs and the fact of the construction of the bridge are widely criticized by Russian political opposition.[3] In January 2007, Vladimir Putin, then-President of Russia, stated that holding a summit in Vladivostok is a distinct possibility, and that at least 100 billion rubles would be required to prepare the city for the summit, which, at the time, was three-times more than the budget of Primorsky Krai as a whole.[4] As of 2012, the costs of construction of the bridge to Russkiy Island with population of only 5,000 inhabitants is expected to surpass $1 billion USD. The throughput of the bridge is 50,000 cars per day which many times exceeds the existing population. Project description on the site of the general contractor does not list project costs.[5]

There has also been criticism of the fact that the paved road ends in a dead end just beyond the bridge. Local residents who live on the other side of the island have no access to telephones, public lighting or running water.[6]
